Master EMI/RFI shielding: The ultimate guide to protecting electronic products

Introduction

Electromagnetic interference (EMI) and radio frequency interference (RFI) can disrupt the performance of electronic devices. Designing effective shielding is crucial for ensuring the reliability of equipment. But what factors should you consider, and which materials are best suited for the task?

Shielding materials for EMI/RFI include conductive foams, conductive gaskets, metal enclosures, metal foils, metallized fabrics, and even conductive adhesives or epoxies.

To delve deeper into the complexities of EMI/RFI shielding design and understand the significance of each material, let's explore further.

Understanding EMI/RFI and Their Impacts

In our interconnected world where electronic devices are inseparable from daily life, the concepts of electromagnetic interference (EMI) and radio frequency interference (RFI) have become increasingly important. These interferences can affect the performance of our devices, so it is crucial to understand their origins and impacts.

What are EMI/RFI?

Electromagnetic interference (EMI) and radio frequency interference (RFI) refer to disruptions in the operation of electronic devices due to electromagnetic or radio frequency radiation from external sources. EMI is a broader term that includes interference from any electromagnetic source, while RFI specifically refers to interference caused by radio frequencies. Common culprits include mobile phones, Wi-Fi routers, radios, and even certain household appliances. These sources of interference can inadvertently introduce unwanted disruptions into other devices, leading to a range of operational issues.

Advertisement

The Necessity of Shielding

The impacts of uncontrolled EMI/RFI are manifold:

1. **Performance Degradation**: Devices may not function properly, leading to reduced efficiency or complete failure.

2. **Data Corruption**: Interference can cause errors in data transmission, affecting the integrity of information.

3. **Safety Concerns**: In critical systems, such as medical equipment or aviation controls, EMI/RFI can pose serious safety risks.

4. **Legal Compliance**: Many industries are subject to regulations that require devices to meet certain EMI/RFI shielding standards to minimize interference with other systems.

5. **Customer Satisfaction**: Devices that are susceptible to interference can lead to customer dissatisfaction and loss of trust in the product.

To mitigate these issues, effective shielding materials and designs are essential. These materials work by absorbing or reflecting the electromagnetic waves, preventing them from reaching sensitive electronic components.

**Factors to Consider in Shielding Design**

1. **Frequency Range**: Different materials are effective at different frequencies. It's important to select materials that provide the necessary shielding across the frequency range of concern.

2. **Material Conductivity**: The conductivity of the material plays a significant role in its shielding effectiveness. Higher conductivity generally means better shielding.

3. **Thickness and Density**: The thickness and density of the shielding material can affect its ability to block EMI/RFI.

4. **Flexibility and Durability**: The material should be flexible enough to conform to the shape of the device and durable enough to withstand environmental conditions.

5. **Cost and Availability**: The cost of the shielding material and its availability can also influence the choice, especially for large-scale production.

6. **Environmental Impact**: Some materials may have environmental considerations, such as recyclability or the presence of harmful substances.

By understanding these factors and the properties of various shielding materials, engineers can design systems that are both reliable and compliant with industry standards, ensuring the optimal performance of electronic devices in the presence of EMI/RFI.Data Interruption: Interference can cause data to be corrupted during transmission, leading to information loss or misreading.

Operational Failures: Equipment, especially sensitive devices, may malfunction or even shut down when subjected to severe interference.

Safety Hazards: In critical fields such as healthcare or aviation, EMI/RFI can lead to equipment failure, posing potential life-threatening risks.

Efficiency Reduction: Continuous exposure to electromagnetic interference/radio frequency interference can degrade the performance of equipment over time, resulting in reduced efficiency and lifespan.

Given these potential challenges, the importance of effective shielding is self-evident. Shielding not only ensures the smooth operation of equipment but also extends its service life and ensures the safety of critical applications.

Key Materials for EMI/RFI Shielding

Shielding EMI/RFI is crucial for ensuring the optimal performance of electronic devices. To this end, various materials can be used, each with its unique properties and applications. Let's delve into some of the most commonly used EMI/RFI shielding materials.

Conductive Foam

Conductive foam is a porous, soft material infused with conductive elements, typically used for gasketing and sealing applications. Their characteristics include:Flexibility: Easily adaptable to irregular shapes.

Compressibility: Provides a tight seal against EMI/RFI.

Applications: Commonly used in electronic housings, handheld devices, and communication equipment.

Advantages: Lightweight, low cost, and good conductivity.

Conductive Pads

These are typically flexible thin sheets or pads made from conductive materials.

High conductivity: Ensures effective shielding against interference.

Applications: Suitable for spaces with tight tolerances, such as between circuit boards and housings.

Advantages: Easy to use, versatile, and provide stable shielding performance.

Metal HousingsMetal casings or metal boxes can serve to shield EMI/RFI.

Strong protection: Provides comprehensive shielding to prevent external interference.

Applications: Widely used in electronic devices, from mobile phones to industrial machinery.

Advantages: Durable, long-lasting, and effective shielding.

Metal foil

Thin metal sheets used for shielding purposes, typically with an adhesive as the base material.

High reflectivity: Reflects electromagnetic waves to prevent penetration.

Applications: Used in cables, circuit boards, and the interiors of electronic device casings.

Advantages: Lightweight, flexible, and can be easily applied to various surfaces.

Metal mesh

A woven material made of metal fibers, offering a balance between shielding effectiveness and breathability.

Applications: Used in various electronic devices and systems where both shielding and ventilation are required.

Advantages: Allows for air circulation while maintaining a high level of shielding.Fabrics woven with metal wires or coated with a thin layer of metal.

Flexibility: Can be molded into various shapes and sizes.

Applications: Commonly used in wearable technology, curtains, and protective clothing.

Advantages: Combines the flexibility of fabric with the conductivity of metal, providing effective shielding.

Conductive adhesives or epoxies

Bonding materials infused with conductive particles.

Seamless integration: Can be used for seams or gaps to ensure continuous shielding.

Applications: Used for bonding components while providing EMI/RFI protection.

Advantages: Serves dual functions of bonding and shielding, easy to apply, and provides robust interference shielding.Factors to Consider in Shielding Design

Designing effective EMI/RFI shielding is not just about selecting the right materials. It is a holistic process that requires a deep understanding of the device's functionality, operating environment, budget constraints, and the long-term durability and maintenance requirements of the chosen shielding solution. Let's delve into these considerations.

Device Functionality

The primary function of the device significantly influences the choice of shielding materials. For instance:

Sensitive Equipment: Instruments such as medical devices or precision measurement tools may require more robust shielding solutions to prevent even the slightest interference.

High-Frequency Equipment: Devices operating at higher frequencies may necessitate materials with higher conductivity to ensure effective shielding.

Environment

The external environment plays a crucial role in determining shielding needs.

Temperature: Certain shielding materials may degrade or lose effectiveness under extreme temperature conditions. It is essential to choose materials that can withstand the temperature range in which the device operates.

Humidity: Humid environments can corrode certain shielding materials, thereby reducing their long-term effectiveness.Interference Sources: In areas with dense electronic devices or strong radio signals, more robust shielding may be required.

Cost Implications

While effective shielding is important, considering the budget is equally crucial.

Initial Cost: Some high-end materials can provide excellent shielding performance, but they come with a higher initial cost.

Long-term Savings: Investing in durable, high-quality shielding materials can reduce maintenance costs and extend the service life of equipment, leading to long-term savings.

Durability and Maintenance

The lifespan of shielding materials and their maintenance requirements are critical considerations.

Wear and Tear: Materials that can withstand regular wear and tear without degradation are preferable, especially for equipment with a long operational lifespan.

Maintenance Requirements: Some shielding solutions may require regular inspection and replacement. When selecting materials, these maintenance costs and efforts must be taken into account.EMI/RFI Shielding Stamping Parts

Electromagnetic interference (EMI) and radio frequency interference (RFI) are disturbances that can affect the operation of electronic devices. Shielding these interferences is crucial for ensuring the optimal performance and reliability of the equipment. Stamping is one of the effective methods for creating these shields.

What is EMI/RFI Shielding Stamping?

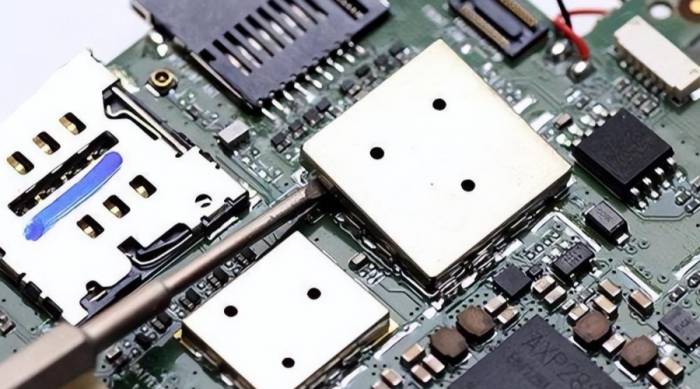

EMI/RFI shielding stamping is a manufacturing process that involves stamping conductive materials such as metal sheets into specific shapes and sizes to create shields for electronic components. These stamped shields are then integrated into devices to protect them from external electromagnetic and radio frequency interference.

Advantages of EMI/RFI Stamping Shields:

Precision: The stamping process can produce shields with precise dimensions, ensuring a perfect fit with the device or component. Cost-effective: Stamping is a scalable process, making it cost-effective for the production of large quantities of shields. Versatility: Different materials can be used in the stamping process, such as copper, aluminum, or steel, allowing for the customization of shields according to specific needs. Durability: Stamped shields are robust and durable, capable of withstanding various environmental conditions, ensuring long-lasting protection.

Applications

Consumer Electronics: Devices such as smartphones, tablets, and laptops often use stamped shields to protect their internal components from the effects of EMI/RFI.Medical Equipment: Precision instruments and devices such as Magnetic Resonance Imaging (MRI) machines or pacemakers use stamped shielding covers to ensure accurate operation without interference.

Automotive: Modern automobiles have numerous electronic components that require stamped shielding covers to prevent interference between different systems.

Aerospace: Aircraft instruments and communication systems use stamped components for shielding to ensure reliable operation.

EMI/RFI shielding stamping is an essential process in the electronics manufacturing industry, ensuring that equipment operates reliably without interference. As electronic devices increasingly integrate into our daily lives, the importance of effective shielding (such as that provided by stamping) will only grow.

Conclusion

In an era dominated by electronic devices, the importance of shielding EMI/RFI cannot be overstated. If left uncontrolled, these interferences can damage the functionality, reliability, and lifespan of equipment. From conductive foam to metal casings, various shielding materials and technologies offer tailored solutions for different applications. By carefully understanding these materials and aligning them with the requirements of the equipment and its operating environment, we can ensure that the equipment not only performs at its best but also stands the test of time. Investing in effective shielding is an investment in the durability, efficiency, and overall performance of the equipment.
